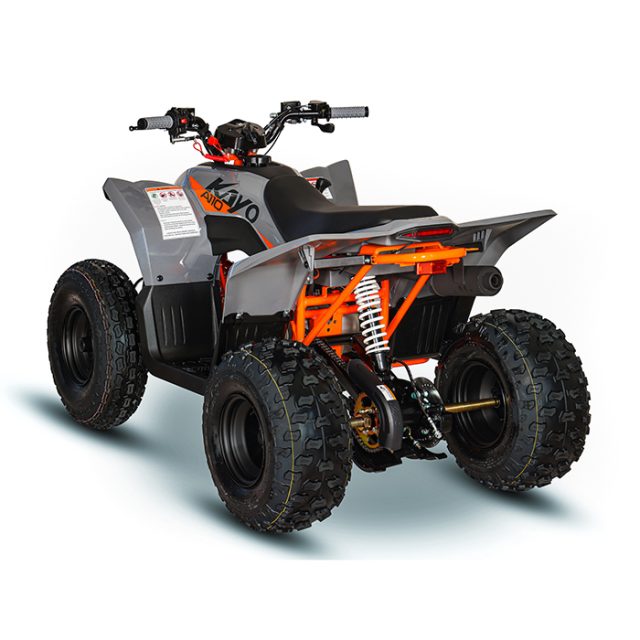

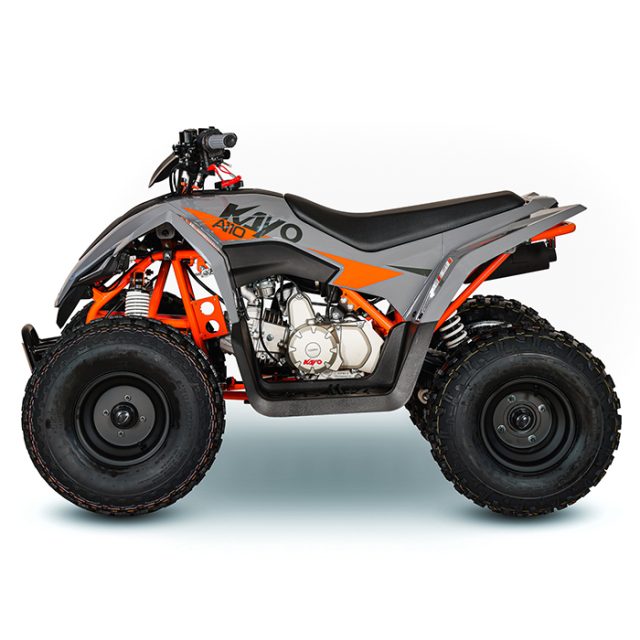

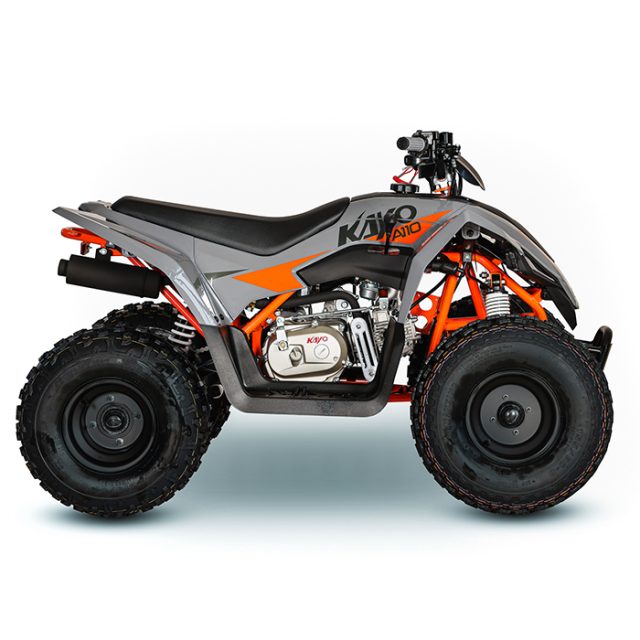

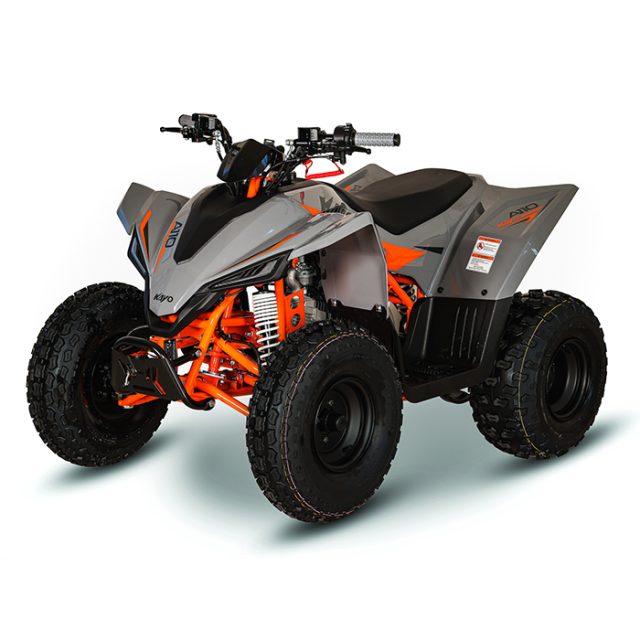

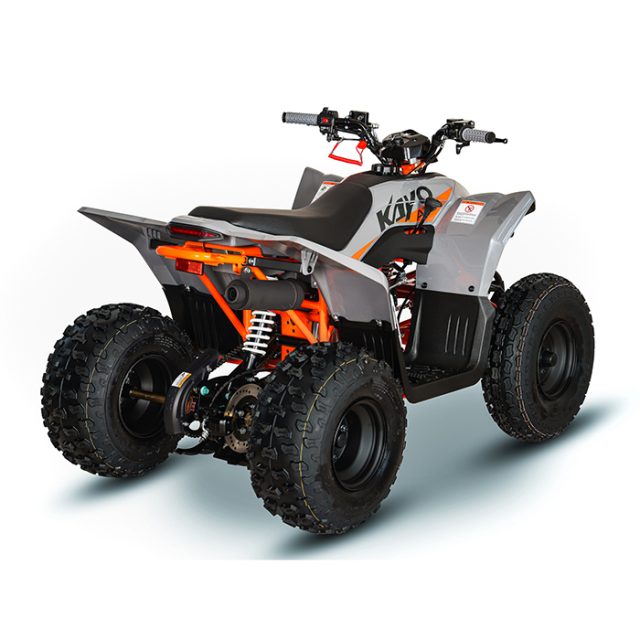

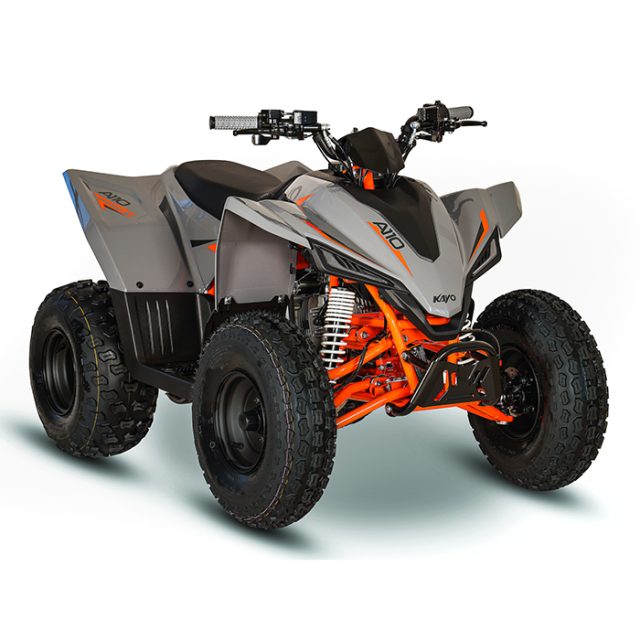

With adjustable front and rear suspension, hydraulic disc brakes, 16” wheels and a 670mm seat height, the A110 offers a substantial step up from smaller children’s quads while still being designed around a manageable riding position.
It’s not a toy dressed up to look like a quad. The A110 is a genuine, serviceable ATV designed for regular off-road use, with Kayo engineering and Stomp Distribution support behind it.
⚡ Key Features
- 🔥 106.7cc 4-stroke air-cooled engine
- ⚙️ Fully automatic transmission
- 🔄 Reverse, neutral & forward
- 🔑 Electric start
- 🛑 Safety cut-out lanyard
- 🎚️ Adjustable throttle restrictor
- ⚡ CDI ignition
- 💥 310mm adjustable front suspension
- 💥 300mm adjustable rear suspension
- 🛑 Hydraulic front & rear disc brakes
- 🛞 16×8-7 front tyres
- 🛞 16×8-7 rear tyres
- ⛓️ 2WD chain final drive
- 💡 Headlight & tail light
- 🅿️ Front parking brake
- 🏗️ Polypropylene bodywork with 3M decals
- 📏 Approx. 670mm seat height
- 📏 Approx. 110mm ground clearance
- ⚖️ Approx. 110kg dry weight
- ⛽ 4.5L fuel tank
- 📏 980mm wheelbase
- 👦 Recommended from approximately 10+ with adult supervision
🔥 106.7cc 4-Stroke Engine
At the heart of the A110 is a 106.7cc 4-stroke, air-cooled engine.
The engine uses a SOHC 2-valve cylinder head and carburettor fuel system, keeping the mechanical package straightforward and serviceable.
Kayo lists maximum output at:
5.8kW @ 7,500rpm
and maximum torque at:
7.8Nm @ 5,500rpm
The combination gives the A110 a substantial amount of performance for a youth ATV, while the throttle restrictor allows the supervising adult to control how much of that performance the rider can access.
⚙️ Fully Automatic Transmission
The A110 uses a fully automatic transmission with R-N-F.
That means there is:
R → Reverse
N → Neutral
F → Forward
There are no manual gears or clutch controls to worry about.
The rider can concentrate on the fundamentals:
- Steering
- Throttle control
- Braking
- Understanding the terrain
- Learning how to control the quad
The automatic transmission also makes the A110 a natural progression from smaller automatic children’s quads.
🔑 Electric Start & Safety Controls
Starting the A110 couldn’t be simpler thanks to its electric-start system.
The quad is also equipped with a safety lanyard, designed to cut the engine if the rider becomes separated from the ATV.
An adjustable throttle restrictor allows the supervising adult to limit the available throttle while the rider develops their confidence and ability.
This means the A110 can be introduced at a more manageable pace before gradually allowing the rider to make greater use of its performance.

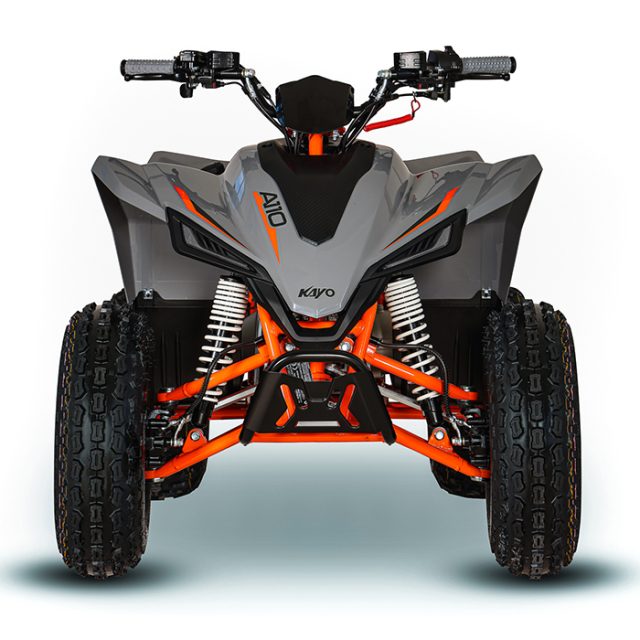

💥 Adjustable Front Suspension
One of the standout features of the A110 is its 310mm adjustable front suspension.
The front suspension is designed to give the ATV a proper off-road chassis capable of dealing with uneven surfaces and changing terrain.
Unlike basic children’s quads fitted with very simple suspension systems, the A110 has been designed as a genuine performance-oriented ATV.

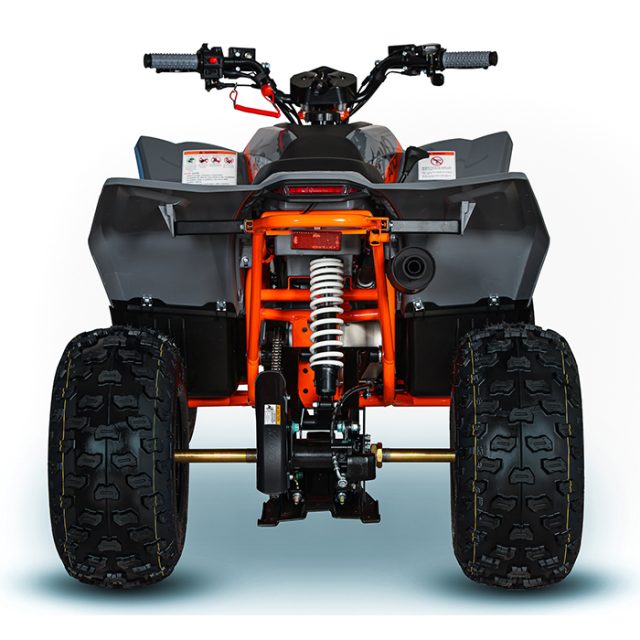

🔧 Adjustable Rear Suspension
The rear of the A110 features 300mm adjustable suspension.
Having adjustable suspension at both ends gives the ATV a more sophisticated chassis setup and allows the suspension to be adjusted to suit the rider and riding conditions.
Combined with the 980mm wheelbase and 110mm ground clearance, the A110 has the proportions of a much more substantial ATV while retaining a youth-friendly 670mm seat height.
🛑 Hydraulic Disc Brakes
The A110 comes equipped with hydraulic disc brakes front and rear.
Front
Hydraulic disc brake
Rear
Hydraulic disc brake
Hydraulic braking provides dedicated braking at both ends of the ATV.
As always, brakes should be checked before riding and maintained regularly.
🛞 16×8-7 Off-Road Wheels
The A110 runs 16×8-7 tyres front and rear.
This larger wheel and tyre combination gives the quad a substantial stance while providing a suitable footprint for off-road riding.
The 16-inch wheel setup also complements the A110’s larger chassis and 670mm seat height.
🏗️ Purpose-Built ATV Chassis
The A110 has been designed as a proper ATV rather than simply a small engine fitted into a basic quad chassis.
The combination of:
- 980mm wheelbase
- 110mm ground clearance
- 16×8-7 tyres
- Adjustable front suspension
- Adjustable rear suspension
- Hydraulic disc brakes
gives the A110 a substantial off-road platform for growing riders.
The bodywork uses polypropylene plastics with 3M decals, while the overall dimensions are approximately:
1430mm long × 890mm wide × 910mm high.
📏 A110 Dimensions
The Kayo A110 has an approximate:
Overall size: 1430 × 890 × 910mm
Seat height: 670mm
Ground clearance: 110mm
Wheelbase: 980mm
Dry weight: 110kg
Fuel capacity: 4.5L
The 670mm seat height makes rider fit particularly important, especially for younger riders.
